Timeline

Displays a flow of events in a timely manner. Technically, it renders information in chronological order. Can be used to represent roadmaps.

PreviousRatingNextSlider

Last updated 4 months ago

Basic

Timeline Data

Provide the JSON data of the array, consisting of the timeline nodes in the format mentioned below.

title

Title text of Timeline(s). This value is required.

subTitle

Subtitle text of Timeline(s).

label

Label of Timeline(s), usually displays the dates.

color

Specify the colour of the Timeline nodes.

dot

Renders the Timeline icons as the Ant Design Icons.

titleColor

Specify the colour of the node title. Each node can have its own colour.

subTitleColor

Specify the colour of the node subtitle.

labelColor

Sets the colour of the node icon. It can be defined individually.

[
  {

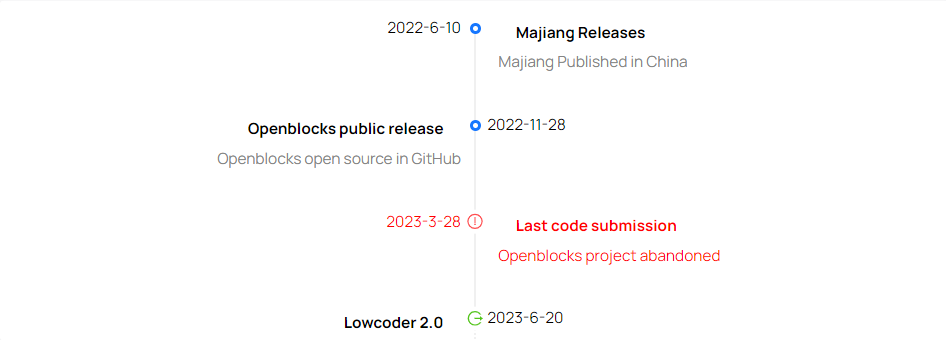

    "title": "Majiang Releases",
    "subTitle": "Majiang Published in China",
    "label": "2022-6-10"
  },
  {
    "title": "Openblocks public release",
    "subTitle": "Openblocks open source in GitHub",
    "label": "2022-11-28"
  },
  {
    "title": "Last code submission",
    "subTitle": "Openblocks project abandoned",
    "dot": "ExclamationCircleOutlined",
    "label": "2023-3-28",
    "color": "red",
    "titleColor": "red",
    "subTitleColor": "red",
    "labelColor": "red"
  },
  {
    "title": "Appizap 2.0",
    "subTitle": "Appizap, keep moving forward",
    "dot": "LogoutOutlined",
    "color": "green",
    "label": "2023-6-20"
  }
]

Interaction

Event Handlers

Event
Description

Click

Disabled

Disables the user interaction with the element on the page. It visually indicates that the element is inactive and prevents users from interacting with it when applied. Shows a red-crossed warning symbol and can be customized to disable the widget according to certain conditions using low-code.

Hide

This sets whether the widget has to be displayed on the screen when the program is loaded. This shows/hides the widget both on desktop and mobile devices.

Layout

Display Order

Property
Description

Content Right

The labels are aligned left and the content at each node is placed at the right.

Content Left

The labels are aligned right and the content at each node is placed on the left.

Alternate Content Order

The label and the content are interchanged in their position (left/right) at each node along the timeline.

Pending Node Text

Provide the string text to show when the subsequence timeline nodes are getting loaded on to the screen.

Newest Events First

Places the latest event at the top of the timeline list when this toggle is ON.

Style

Property
Description

Background

Users can change the colour of the text background using this property. It has all the RGB colour ranges to pick from. It is recommended to use a corresponding background colour that shows the font clearly.

Title Color

Specify the colour of the node title.

Label Color

Set the colour of the node icon.

Subtitle Color

Specify the colour of the node subtitle.

Border Color

Set the colour to the border lines. The border lines will be shown only if that is enabled.

Margin

This value is set in terms of "px" number which creates the space between the border and the content of the widget.

Padding

This value is set in terms of "px" number which creates the space between the border and outer elements.

Border Radius

This sets the radius of the widget's corners, enabling rounded corners on the widget. This value is defined in "px" terms.

Border Width

Set the thickness of the border of the widget using this value. It is defined using "px" terms.

This is triggered when this is used as a default button and the user clicks on it..

Read-only
Set the visibility
