  1. Appizap Studio
  2. Widget Library

Navigation

It is an organized set of links to the internal elements of an application. Set of quick links to various elements of the app. This widget helps users with smooth navigation and better usability.

PreviousDrawerNextCascader

Last updated 4 months ago

Basic

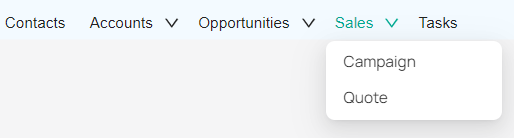

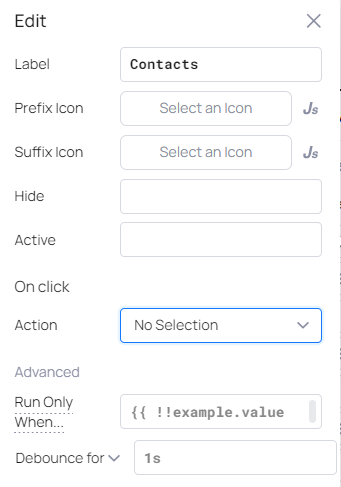

Hierarchical Navigation Menu Items

It is a list of menu items defined as the links for the navigation set. These links may be linked mostly with internal elements of the app.

Property
Description

Label

Type the title text to the menu item

Prefix Icon

Choose one from the set of icons that will be displayed as a prefix logo, just before the button text.

Suffix Icon

Choose one from the set of icons that will be displayed as a suffix logo, just after the logo text.

Hide

Set whether the link has to be displayed on the screen when the widget is loaded. This shows/hides the item both on desktop and mobile devices.

Active

Disable the user interaction with the element on the menu. It visually indicates that the element is inactive and prevents users from interacting with it when applied.

On click

This is triggered when the user clicks on the item. The user can decide which action to execute using the list.

Interaction

Disabled

Disables the user interaction with the element on the page. It visually indicates that the element is inactive and prevents users from interacting with it when applied.

Hide

This sets whether the widget has to be displayed on the screen when the program is loaded. This shows/hides the widget both on desktop and mobile devices.

Layout

Horizontal Alignment

Property
Layout

Left - The menu is attached to the left side of the screen

Center - The menu is placed at the center part of the screen

Right - The menu is attached to the right side of the screen

Justify - The menu is adjusted and justified to the width of the screen.

Mode

Horizontal - Displays the navigation items next to each other as a horizontal set

Vertical - Displays the navigation items as a list of menu vertically

Height

Auto

The height is auto-adjusted for the content

Fixed

The height of the widget is fixed

Advanced

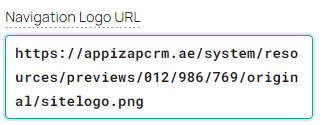

Navigation Logo URL

This is the URL link to an icon image that serves as a logo to the app or the navigation menu, symbolizes the app and purpose.

Style

Property
Description

Text

Set the colour of the text. Recommended to set in contrast with the background.

Accent

An accent is a typically bright colour that contrasts with the more utilitarian background and foreground colours within a colour scheme. These are present in the visual style of many platforms (though not all).

Background

Users can change the colour of the text background using this property. It has all the RGB colour ranges to pick from. It is recommended to use a corresponding background colour that shows the font clearly.

Text Transform

Text Decoration

This property sets the appearance of decorative lines on text. Types are "underline", "overline", "line-though", "overline-underline".

Text Size

Set the size of the text in px value - 12px

Text Weight

Increase or decrease the thickness of the font using the list of numbers from 100-800.

Font Family

Font Style

There are 3 types of styles that can be applied: "normal" - The text is shown normally, no style applied. "italic" - The text is cursive. "oblique" - A sloped version of the normal text.

Border Color

Set the colour to the border lines. The border lines will be shown only if that is enabled.

Margin

This value is set in terms of "px" number which creates the space between the border and the content of the widget.

Padding

This value is set in terms of "px" number which creates the space between the border and outer elements.

Border Radius

This sets the radius of the widget's corners, enabling rounded corners on the widget. This value is defined in "px" terms.

Border Width

Set the thickness of the border of the widget using this value. It is defined using "px" terms.

On the web, an accent is sometimes used in input elements for the active portion of the control, for instance, the background of a checked checkbox.

This property specifies how to capitalize an element's text. It can be used to make text appear in all-uppercase or all-lowercase, or with each word capitalized.

Type the name of the font family. The reference to the list of font families can be found here:

MSDN web docs
MDN web docs
MDN web docs
Read-only
Set the visibility
