  1. Appizap Studio
  2. Widget Library

Modal

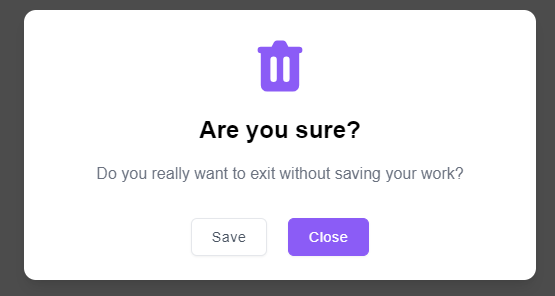

The modal is a popup element that is displayed above all other content and it restricts user interaction until the user manually closes it. It blurs out the other areas of the screen.

PreviousInputNextText Display

Last updated 4 months ago

Basic

Property
Description

Height

Auto - the height of the widget is auto-adjusted with the screen size and display. Fixed - the heigh of the widget is fixed in terms of 'px' value.

Modal Width

Specify the width number of the modal, either in terms of '%' (of the screen) or in terms of 'px'.

Title

The header text for the modal

Title Alignment

Left - aligns the title to the left of the section. Center - aligns the title at the middle of the section. Right - aligns the title to the right end of the section.

Hide Title Bar

Toggle this on to hide the header title from display

Hide Close Button

Toggle this on to hide the 'X' button that closes the modal upon click

Close on escape key

Pressing the ESC key on the keyboard closes the modal when the widget is active

Click Outside to Close

Gives users the option to click outside the area to close the modal

Show Mask

Toggle this on to show a grey-blurred mask on the screen, surrounding the widget

Interaction

Event Handlers

Event
Description

Close

Hide

This sets whether the widget has to be displayed on the screen when the program is loaded. This shows/hides the widget both on desktop and mobile devices.

Style

Property
Description

Background

Users can change the colour of the text background using this property. It has all the RGB colour ranges to pick from. It is recommended to use a corresponding background colour that shows the font clearly.

Border Color

Set the colour to the border lines. The border lines will be shown only if that is enabled.

Border Radius

This sets the radius of the widget's corners, enabling rounded corners on the widget. This value is defined in "px" terms.

Box Shadow

The is the colour of the shadow that is generated behind the widget box. The X and Y axis values can be altered such that the shadow can be set to fall anywhere behind the widget area. "x-offset" - a positive number specifies the shadow will be on the right of the box, and a negative number will put the shadow on the left of the box. "y-offset" - a negative one means the shadow will be above the box, and a positive number means the shadow will be below the box. "Blur" - if the number is set to 0 then the shadow will be sharp. It will more blurred as the number goes higher, and the shadow will extend further away. "Color" - sets the colour of the shadow. If the colour is not set, the box shadows are drawn in the foreground colour.

Title Background

Set the background colour for the header text area.

Title Color

Set the colour for the title text. Recommended to pick this colour in contrast with the Title Background to show the text clearly.

Border Width

Set the thickness of the border of the widget using this value. It is defined using "px" terms.

Margin

This value is set in terms of "px" number which creates the space between the border and the content of the widget.

Padding

This value is set in terms of "px" number which creates the space between the border and outer elements.

BG Image

Provide the URL for the image serves as the background image to the widget

BG Repeat

BG Size

Specifies the size of the background image. auto- Default value. The background image is displayed in its original size cover - Resize the background image to cover the entire container, even if it has to stretch the image or cut a little bit off one of the edges

BG Position

BG Origin

The "Close" event is activated when the widget is closed. When this event triggers, the associated action gets executed.

Controls the repetition of the widget's background image. repeat - The background image is repeated both vertically and horizontally. no-repeat - The background-image is not repeated. The image will only be shown once. The reference to the list of options can be found here:

The reference to the list of options can be found here:

Sets the starting position of a background image. center - keeps the image at the center position. The reference to the list of options can be found here:

Specifies the origin position (the background positioning area) of the background image. The reference to the list of options can be found here:

MDN web docs
MDN web docs
MDN web docs
MDN web docs
Set the visibility
