Download Pdf Button

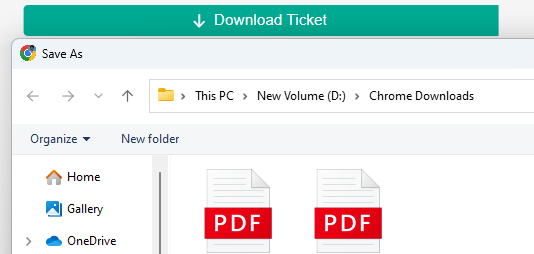

The "Download Pdf Button" Widget allows users to attach a link to any PDF file and users can download the file upon clicking the button.
Last updated
The "Download Pdf Button" Widget allows users to attach a link to any PDF file and users can download the file upon clicking the button.
Last updated
The text is displayed on the body of the button. It is recommended to use a short string for the text, as the button is used for triggering a command or action.
Name for the pdf being generated and to be saved. The current timestamp value is used as the file name to save, if this field is empty.
Click - This is triggered when the user clicks on it. It can be attached with a corresponding action.
Disables the user interaction with the element on the page. It visually indicates that the element is inactive and prevents users from interacting with it when applied.
This sets whether the widget has to be displayed on the screen when the program is loaded. This shows/hides the widget both on desktop and mobile devices.
It will be useful when there is a process to be carried out, like running a query to fetch data, before the widget is loaded. The loading boolean value can be utilized to show the spinner till the process is complete.
Submit** -** 'Form to Submit' will show the list of forms and the user needs to choose one to attach to the widget.
Once the form has been linked, define the submit event. This will be triggered when the user clicks the button.
Choose one from the set of icons that will be displayed as a prefix logo, just before the button text.
Choose one from the set of icons that will be displayed as a suffix logo, just after the logo text.
| Property | Description |
|---|---|
Background | Users can change the colour of the text background using this property. It has all the RGB colour ranges to pick from. It is recommended to use a corresponding background colour that shows the font clearly. |
Box Shadow | The is the colour of the shadow that is generated behind the widget box. The X and Y axis values can be altered such that the shadow can be set to fall anywhere behind the widget area. "x-offset" - a positive number specifies the shadow will be on the right of the box, and a negative number will put the shadow on the left of the box. "y-offset" - a negative one means the shadow will be above the box, and a positive number means the shadow will be below the box. "Blur" - if the number is set to 0 then the shadow will be sharp. It will more blurred as the number goes higher, and the shadow will extend further away. "Color" - sets the colour of the shadow. If the colour is not set, the box shadows are drawn in the foreground colour. |
Text | Set the colour of the text. Recommended to set in contrast with the background. |
Loader Color | Pick the colour to the loading spinner when the component shows the loader before getting displayed. |
Text Transform | This property specifies how to capitalize an element's text. It can be used to make text appear in all-uppercase or all-lowercase, or with each word capitalized. MDN web docs |
Text Decoration | This property sets the appearance of decorative lines on text. Types are "underline", "overline", "line-though", "overline-underline". |
Text Size | Set the size of the text in px value - 12px |
Text Weight | Increase or decrease the thickness of the font using the list of numbers from 100-800. |
Font Family | Type the name of the font family. The reference to the list of font families can be found here: MDN web docs |
Font Style | There are 3 types of styles that can be applied: "normal" - The text is shown normally, no style applied. "italic" - The text is cursive. "oblique" - A sloped version of the normal text. |
Border Color | Set the colour to the border lines. The border lines will be shown only if that is enabled. |
Margin | This value is set in terms of "px" number which creates the space between the border and the content of the widget. |
Padding | This value is set in terms of "px" number which creates the space between the border and outer elements. |
Border Radius | This sets the radius of the widget's corners, enabling rounded corners on the widget. This value is defined in "px" terms. |
Border Width | Set the thickness of the border of the widget using this value. It is defined using "px" terms. |
