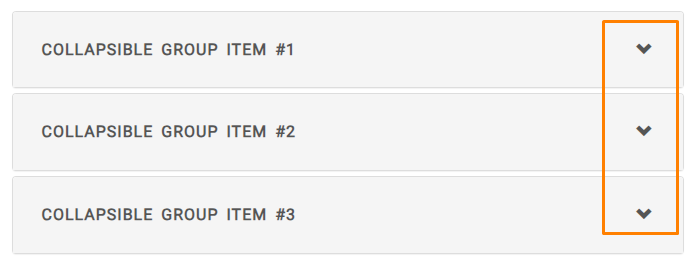

Collapsible Container

The widget saves space by allowing the component to fold when needed. It will show the contents in collapse mode. The dual-mode feature provides logistics efficiency to the app.

Interaction

Disabled

Disables the user interaction with the element on the page. It visually indicates that the element is inactive and prevents users from interacting with it when applied. Shows a red-crossed warning symbol and can be customized to disable the widget according to certain conditions using low-code.

Read-only

Hide

This sets whether the widget has to be displayed on the screen when the program is loaded. This shows/hides the widget both on desktop and mobile devices.

Set the visibility

Tooltip

Tooltips display additional information upon mouse hover. This information will be contextual, useful, and informative. The tooltip will be immediately shown when the user's mouse hovers over the widget, and immediately hides when the user's mouse leaves.

Loading

It will be useful when there is a process to be carried out, like running a query to fetch data, before the widget is loaded. The loading boolean value can be utilized to show the spinner till the process is complete.

Loading state

Layout

Property	Description
Show Header	Decides whether to show the header
Show Body	Decides whether to show the body of the widget
Show Footer	Decides whether to show the footer part of the widget
Fixed on Position	Decides if the widget is fixed on the screen or can be moved using mouse drag
Show at Bottom of Content	Need dev input

Style

Property	Description
Border Color	Set the colour to the border lines. The border lines will be shown only if that is enabled.
Background	Users can change the colour of the text background using this property. It has all the RGB colour ranges to pick from. It is recommended to use a corresponding background colour that shows the font clearly.
Loader Color	Set the colour for the loader spinner when the widget is loaded on to the screen.
Border Radius	This sets the radius of the widget's corners, enabling rounded corners on the widget. This value is defined in "px" terms.
Border Width	Set the thickness of the border of the widget using this value. It is defined using "px" terms.
Margin	This value is set in terms of "px" number which creates the space between the border and the content of the widget.
Padding	This value is set in terms of "px" number which creates the space between the border and outer elements.
BG Image	Provide the URL for the image serves as the background image to the widget
BG Repeat	Controls the repetition of the widget's background image. repeat - The background image is repeated both vertically and horizontally. no-repeat - The background-image is not repeated. The image will only be shown once. The reference to the list of options can be found here: MDN web docs
BG Size	Specifies the size of the background image. auto- Default value. The background image is displayed in its original size cover - Resize the background image to cover the entire container, even if it has to stretch the image or cut a little bit off one of the edges The reference to the list of options can be found here: MDN web docs
BG Position	Sets the starting position of a background image. center - keeps the image at the center position. The reference to the list of options can be found here: MDN web docs
BG Origin	Specifies the origin position (the background positioning area) of the background image. The reference to the list of options can be found here: MDN web docs
Box Shadow	The is the colour of the shadow that is generated behind the widget box. The X and Y axis values can be altered such that the shadow can be set to fall anywhere behind the widget area. "x-offset" - a positive number specifies the shadow will be on the right of the box, and a negative number will put the shadow on the left of the box. "y-offset" - a negative one means the shadow will be above the box, and a positive number means the shadow will be below the box. "Blur" - if the number is set to 0 then the shadow will be sharp. It will more blurred as the number goes higher, and the shadow will extend further away. "Color" - sets the colour of the shadow. If the colour is not set, the box shadows are drawn in the foreground colour.

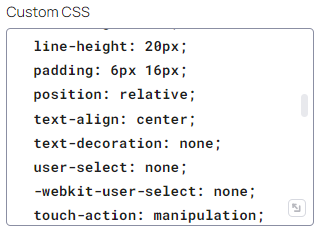

Custom CSS

Users can write a specific style using CSS syntax here and the style text will be applied to the widget when the program is loaded.

Header Style

Property	Description
Header Padding	This value is set in terms of "px" number which creates the space between the header border and other elements of the widget.
Header Background	Users can change the colour of the header background using this property. It has all the RGB colour ranges to pick from.
BG Image	Provide the URL for the image serves as the background image to the widget
BG Repeat	Controls the repetition of the widget's background image. repeat - The background image is repeated both vertically and horizontally. no-repeat - The background-image is not repeated. The image will only be shown once. The reference to the list of options can be found here: MDN web docs
BG Size	Specifies the size of the background image. auto- Default value. The background image is displayed in its original size cover - Resize the background image to cover the entire container, even if it has to stretch the image or cut a little bit off one of the edges The reference to the list of options can be found here: MDN web docs
BG Position	Sets the starting position of a background image. center - keeps the image at the center position. The reference to the list of options can be found here: MDN web docs
BG Origin	Specifies the origin position (the background positioning area) of the background image. The reference to the list of options can be found here: MDN web docs

Body Style

Property	Description
Body Padding	This value is set in terms of "px" number which creates the space between the border of the body and the header/footer.
Background	Users can change the colour of the background for the body using this property. It has all the RGB colour ranges to pick from.
BG Image	Provide the URL for the image serves as the background image to the widget
BG Repeat	Controls the repetition of the widget's background image. repeat - The background image is repeated both vertically and horizontally. no-repeat - The background-image is not repeated. The image will only be shown once. The reference to the list of options can be found here: MDN web docs
BG Size	Specifies the size of the background image. auto- Default value. The background image is displayed in its original size cover - Resize the background image to cover the entire container, even if it has to stretch the image or cut a little bit off one of the edges The reference to the list of options can be found here: MDN web docs
BG Position	Sets the starting position of a background image. center - keeps the image at the center position. The reference to the list of options can be found here: MDN web docs
BG Origin	Specifies the origin position (the background positioning area) of the background image. The reference to the list of options can be found here: MDN web docs
